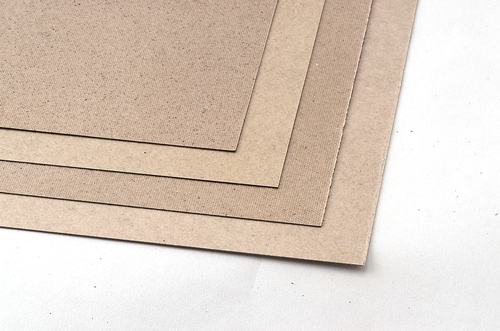

Silicon Bonded Mica Sheets

Silicon Bonded Mica Sheets
Silicon Bonded Mica Sheets
Product Code : 06
Brand Name : M. P. MICA ENTERPRISES
Product Description

Our organization is a renowned company engaged in manufacturing, supplying and exporting optimal quality Silicon Bonded Mica Sheets in the market. These sheets are manufactured using high-grade mica sheets. These sheets are known for having high dielectric property and ability to withstand high temperature.These Silicon Mica Sheets are widely used in manufacturing electric capacitors, muscovite windows and electrical insulator. Moreover, these sheets are available in different sizes as per customers' requirements.

Features:

  • Elevated durability
  • Stable in extreme temperature
  • Recyclable
  • Highly flexible

Silicon Bonded Mica Sheets are laminated using thermosetting resins as well as mica paper, apt for using at elevated temperatures. The products are available with high dielectric strength, good thermal as well as mechanical properties. These Silicon Mica Sheets emit very low quantity of smoke even at extreme temperatures. They are ideal to be used as base plates for electric irons, toasters, and varied other domestic electrical appliances. In addition, they are also used in different industries as thermal insulators.

They are reconstituted muscovite mica paper that infused and bonded with high quality heat resisting silicone resin. Mica Papers are pressed under high heat and pressure to ensure to develop rigid sheets. With good mechanical, electrical as well as thermal properties, they are hard and rigid. They can easily withstand the temperature of 500°C.

Applications:

  • Transformers
  • Television
  • Radio
  • Radar
  • Motors and Generators
  • Miscellaneous Electrical Uses
  • Mechanical Uses
  • Industrial Electric Heating Appliances
  • Electrical Lighting Equipment
  • Electrical Control
  • Electrical Apparatus
  • Electric Heating Appliances
  • Contact Shoes
  • Suspension Links
  • Mantle Lower
  • Protection Shield
  • Smoke Hood Assembly
  • Hangers for Pressure Rings

Shape & Sizes:

  • 1000 mm x 600 mm and 1000 mm x 1200 mm.

Packing:

  • Polythene and Carton

Types of mica sheets/plates and its uses:

Silicon bonded muscovite mica plates-rigid
Uses : parts for hair dryers, electric Iron, electric stove, electric toasters , industrial furnaces, coffee machines, electric rice cooker, electric room heaters etc.

Item

Rigid mica sheet



Mica

Muscovite

Mica content %

>90

Bond content %

<10

Density g/cm 3

1.7~2.15

Heat Resistance

Continuous service °C

500

Intermittent service °C

700

Flexural strength N/mm 2

>200

Water absorption %

<1.5

Dielectric strength KV/mm

>20

Insulation resistance

23°C ohm.cm

>10 17

500°C ohm.cm

>10

Heat loss

at 500°C %

<1

at 700°C%

 N/M


Silicon bonded Phlogophite mica plates
Uses : This kind of mica plates are used when temperatures are higher , such as in metallurgy industry equipment, arc furnace, foundries etc.

Item

Rigid mica sheet

Mica

Phlogopite

Mica content %

>90

Bond content %

<10

Density g/cm 3

1.7~2.15

Heat Resistance

Continuous service °C

700

Intermittent service °C

900


Flexural strength N/mm 2

>150

Water absorption %

<1.5

Dielectric strength KV/mm

>20

Insulation resistance

23°C ohm.cm

>10 17

500°C ohm.cm

>10 12

Heat loss

at 500°C %

<1

at 700°C%

<2

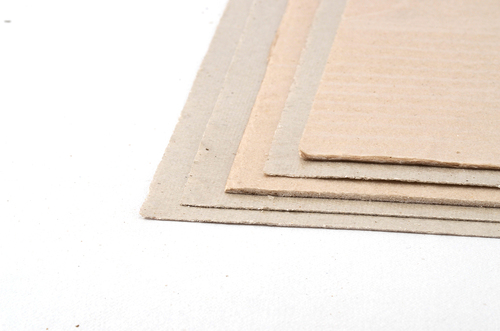

Silicon bonded mica plates-flexible
Uses : Insulation parts which has to be rolled such as hair dryers, motor, electric heating bar etc.

Item

Flexible mica sheet

Mica

Muscovite

Phlogopite

Mica content %

=90

=90

Bond content %

=10

=10

Density g/cm3

1.7-2.1

1.7-2.1

Heat Resistance

Continuous service °C

500

700

Intermittent service °C

700

900

Flexural strength N/mm2

-

-

Water absorption %

<1.5

<1.5

Dielectric strength KV/mm

>20

>18

Insulation resistance

23°C ohm.cm

>1017

>1017

500? ohm.cm

>1012

>1012

Heat loss

at 500°C %

<3

<3

at 700°C%

<3

<4


Epoxy bonded muscovite mica plates
Uses: This kind of mica plates are mainly used for commutator.

Type

-

-

Mica Paper

Muscovite

Phlogopite

Bond Content %

=10

=10

Density g/cm3

2.1-2.4

2.1-2.4

Thickness Tolerance mm

Average

+0.02

+0.02

Individual

+0.03

+0.03

Compressibility

Ce-elastic %

=2.5

=2

Cp-plastic %

=2.5

=2

Flexural Strength MPa

>300

>300

Elastic Modulus MPa

>80 000

>70 000

Resistance To Exudation and Displacement °C

200

200

Dielectric Strength KV/mm

>25

>25
